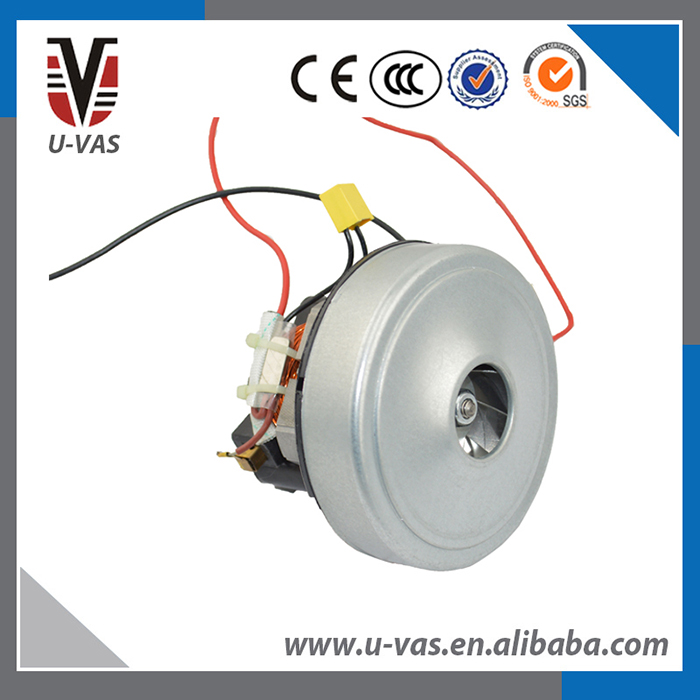

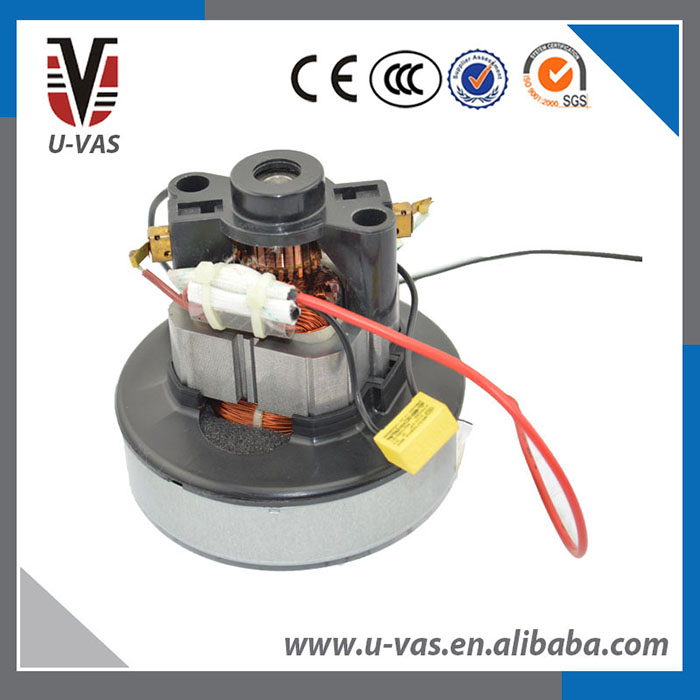

Suction Vacuum Motor

Item: J20X

Type: Single Phase Universal Motor

Voltage: 100-127/200-240V

Power: 800W

Description

Specifications:



Item  J20X
Certificate CE, CCC, RoHS, SGS
Rated Voltage(V) 100-127/220-240
Rated Frequency(Hz) 50/60
Rated Output Power(W)  800
Rotation CW
Max Vacuum Degree(Kpa)  18
Max Air Flow(M3/min)  2.2
Max Suction Power (W)  220
Max Suction Efficiency(%)  34
Motor Speed(Rpm)  32000
Spark Grade  ≤2
Vibration(mm/s)  ≤20
Noise(dB)  ≤92
Insulation Level  F
Life ≥300h
Size(mm) Top 77, bottom 106, height 96.5

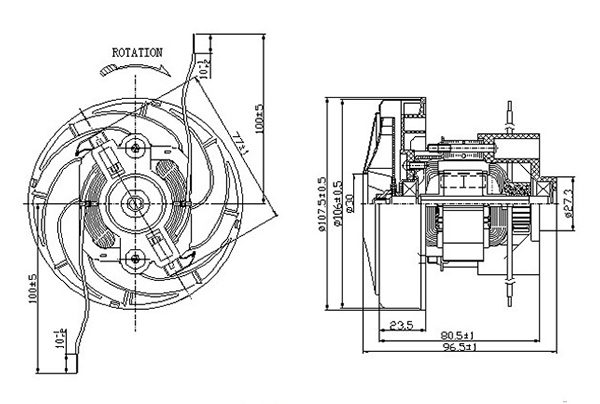

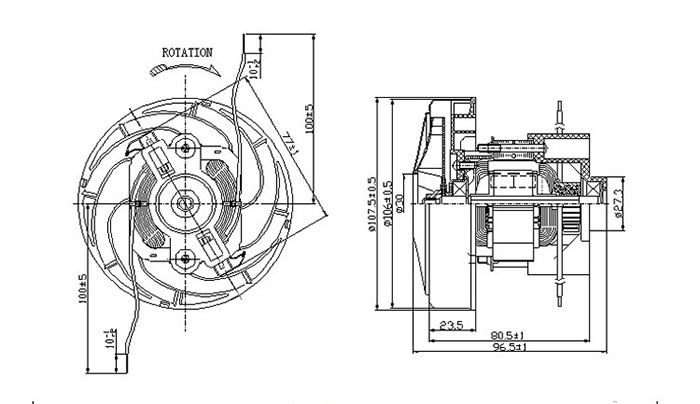

Size Drawing:



TOP
