Description
Specifications:
| Item | PY35 |
| Certificate | CE, CCC, RoHS, SGS |
| Rated Voltage(V) | 100-127/220-240 |
| Rated Frequency(Hz) | 50/60 |
| Rated Output Power(W) | 2600 |
| Rotation | CW |
| Max Vacuum Degree(Kpa) | 33 |
| Max Air Flow(M3/min) | 3.8 |
| Max Suction Power (W) | 800 |
| Max Suction Efficiency(%) | 36 |
| Motor Speed(Rpm) | 34000 |
| Spark Grade | 2 |
| Vibration(mm/s) | 20 |
| Noise(dB) | 108 |
| Insulation Level | F |
| Life | 500h |
| Size(mm) | Top 84, bottom 130, height 127 |

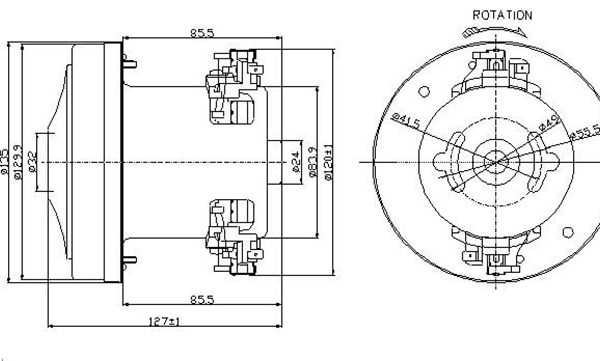

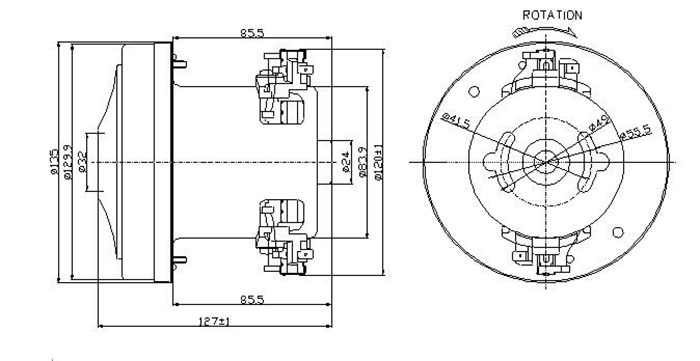

Size Drawing:
