Small 85mm Vacuum Motor 350W

Item: S18

Voltage: 100-127/220-240V

Power: 350W

Description

Specifications:





Item  S18
Certificate CE, CCC, RoHS, SGS
Rated Voltage(V) 100-127/220-240
Rated Frequency(Hz) 50/60
Rated Output Power(W)  350W
Rotation CW
Max Vacuum Degree(Kpa)  12
Max Air Flow(M3/min)  1.2
Max Suction Power (W)  60
Max Suction Efficiency(%)  23
Motor Speed(Rpm)  36000
Spark Grade  ≤2
Vibration(mm/s)  ≤20
Noise(dB)  ≤92
Insulation Level  F
Life  ≥300h
Size(mm) Top 56, bottom 85, height 93

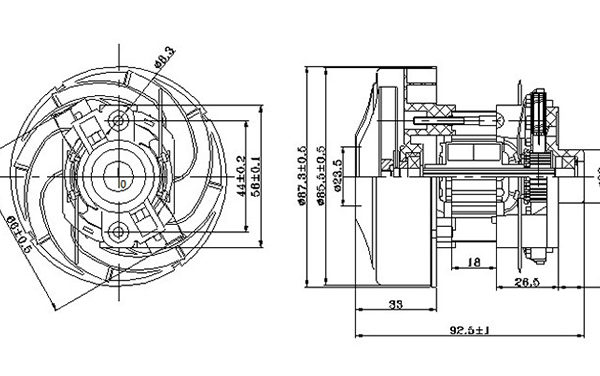

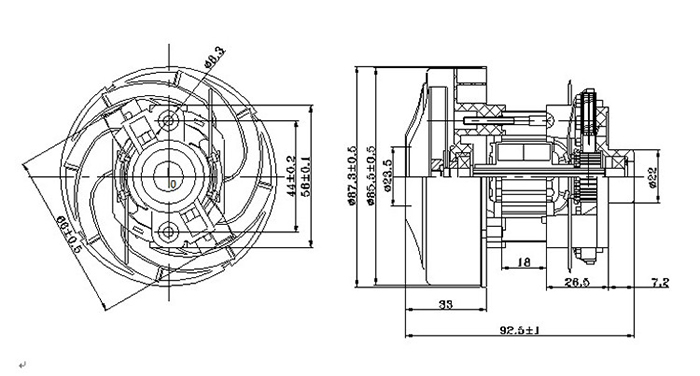

Size Drawing:



TOP
