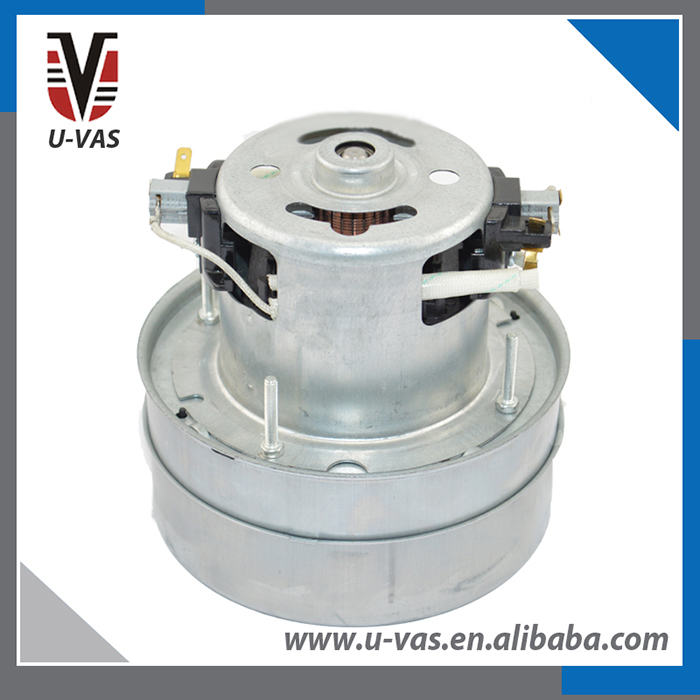

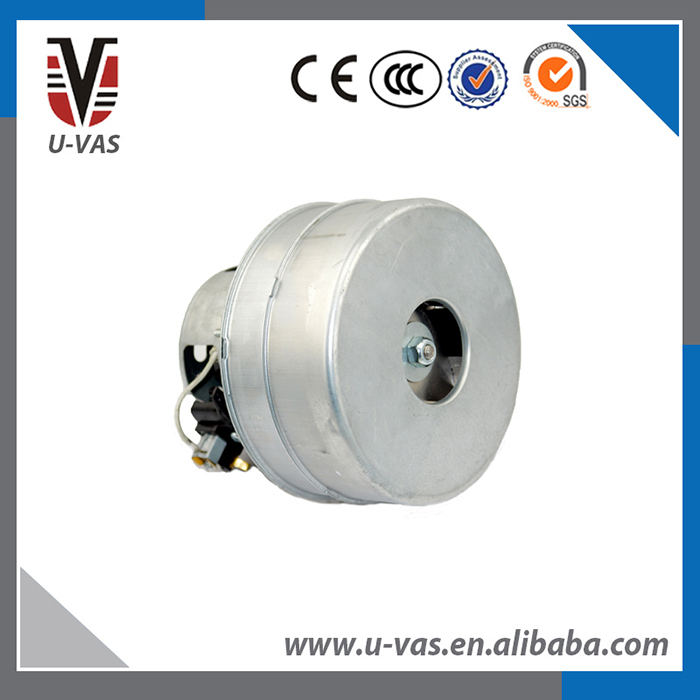

2 Stages Vacuum Motor For Thread Cutting Machine

Item:  PA22D

Type: Single Phase Universal Motor

Voltage: 100-117/220-240V

Power: 1100W

Category:

Description

Specifications:



Item  PA22D
Certificate CE, CCC, RoHS, SGS
Rated Voltage(V) 100-127/220-240
Rated Frequency(Hz) 50/60
Rated Output Power(W)  900
Rotation CW
Max Vacuum Degree(Kpa)  22
Max Air Flow(M3/min)  2.5
Max Suction Power (W)  240
Max Suction Efficiency(%)  30
Motor Speed(Rpm)  21000
Spark Grade  2
Vibration(mm/s)  20
Noise(dB)  102
Insulation Level  F
Life  500h
Size(mm) Top 83, bottom 130, height 131

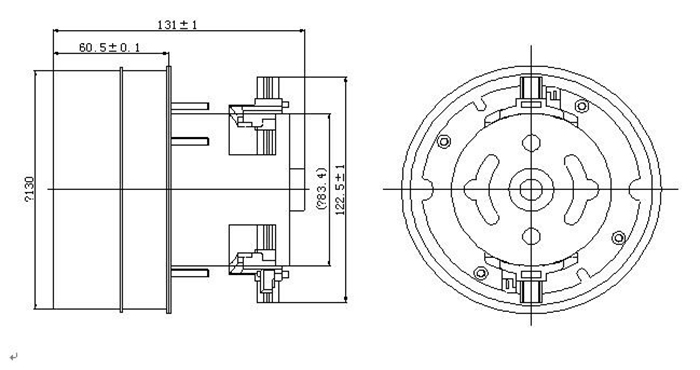

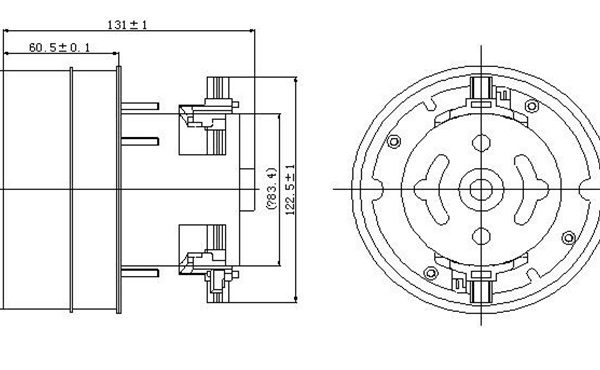

Size Drawing:



TOP
