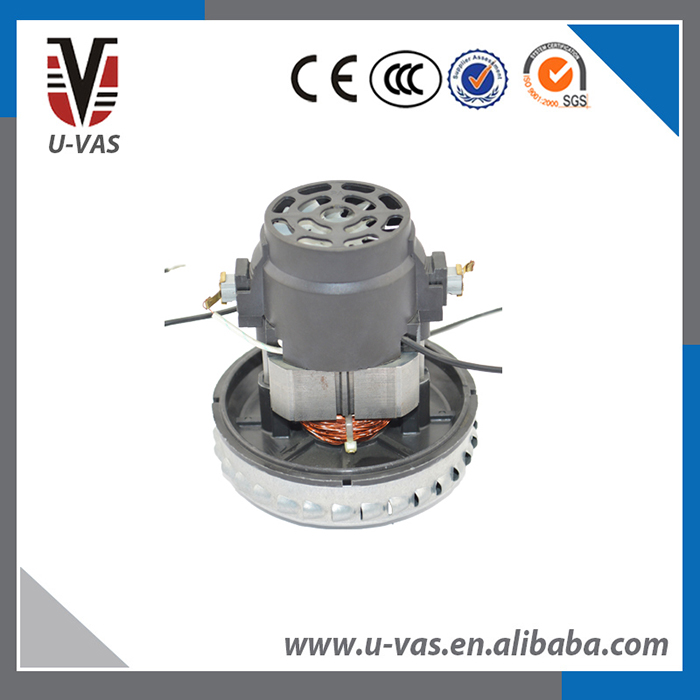

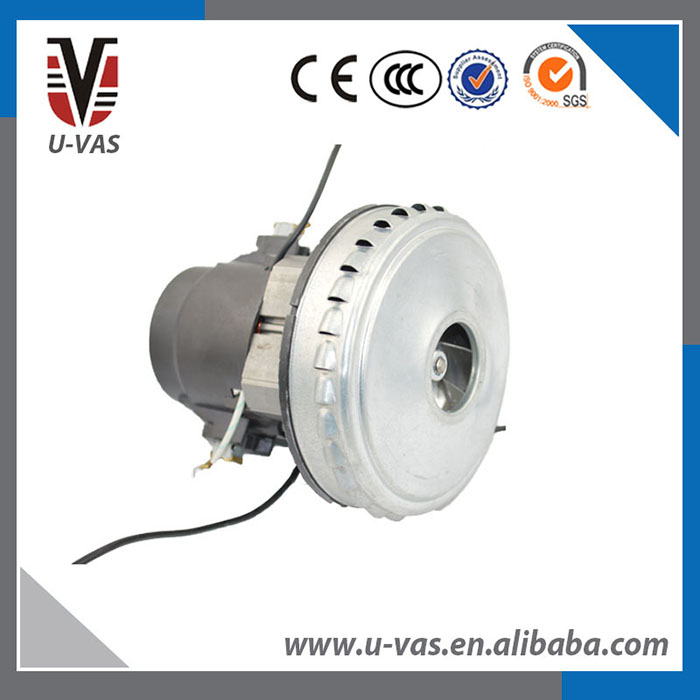

Small Wet Vacuum Cleaner Motor

Item: J24W

Type : Single Phase Universal Motor

Voltage: 100-127/220-240V

Power: 1000W

Description

Specifications:



 Item  J24W
 Certificate CE, CCC
 Rated Voltage(V) 100-127/220-240
 Rated Frequency(Hz) 50/60
 Rated Output Power(W)  1000
 Rotation CW
 Max Vacuum Degree(Kpa)  20
 Max Air Flow(M3/min)  2.4
 Max Suction Power (W)  260
 Max Suction Efficiency(%)  30
 Motor Speed(Rpm)  32000
 Spark Grade  ≤2
 Vibration(mm/s)  ≤20
 Noise(dB)  ≤98
 Insulation Level  F
 Life  ≥300h
 Size(mm) Top 55, bottom 105, height 118

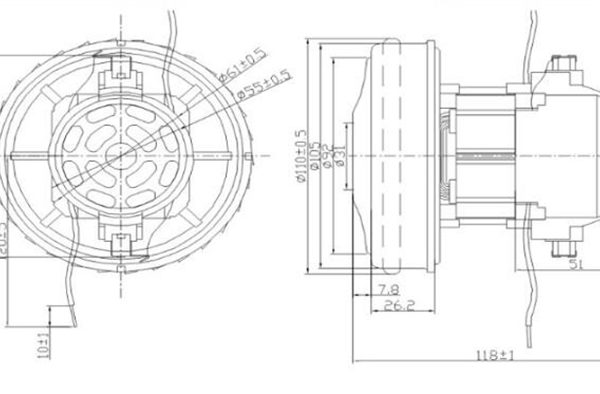

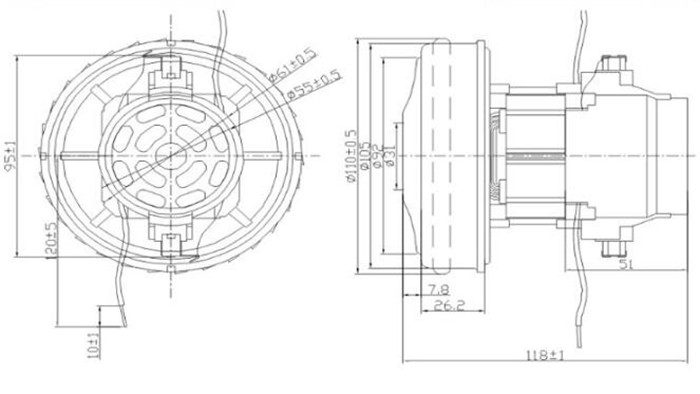

Size Drawing:



TOP
