Description
Specifications:
| Item | GA35 |
| Certificate | CE, CCC, RoHS, SGS |
| Rated Voltage(V) | 100-127/220-240 |
| Rated Frequency(Hz) | 50/60 |
| Rated Output Power(W) | 1800 |
| Rotation | CW |
| Max Vacuum Degree(Kpa) | 34 |
| Max Air Flow(M3/min) | 3.2 |
| Max Suction Power (W) | 540 |
| Max Suction Efficiency(%) | 33 |
| Motor Speed(Rpm) | 34000 |
| Spark Grade | ≤2 |
| Vibration(mm/s) | ≤20 |
| Noise(dB) | ≤112 |
| Insulation Level | Class 155 |
| Life | ≥500h |
| Size(mm) | Top 78, bottom 144, height 189 |

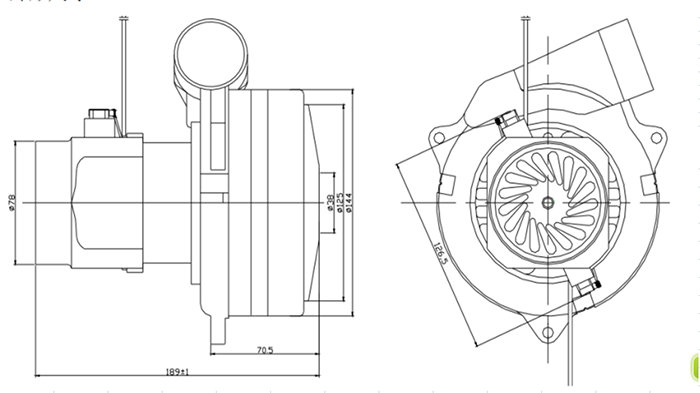

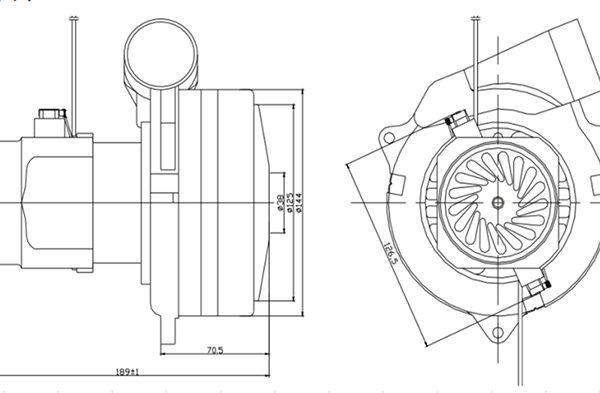

Size Drawing:
