Description
Specifications:
| Item | PA22 |
| Certificate | CE, CCC |
| Rated Voltage(V) | 100-127/220-240 |
| Rated Frequency(Hz) | 50/60 |
| Rated Output Power(W) | 1400 |
| Rotation | CW |
| Max Vacuum Degree(Kpa) | 26 |
| Max Air Flow(M3/min) | 2.8 |
| Max Suction Power (W) | 400 |
| Max Suction Efficiency(%) | 35 |
| Motor Speed(Rpm) | 32000 |
| Spark Grade | ≤2 |
| Vibration(mm/s) | ≤20 |
| Noise(dB) | ≤102 |
| Insulation Level | F |
| Life | ≥500h |
| Size(mm) | Top 84, bottom 130, height 114 |

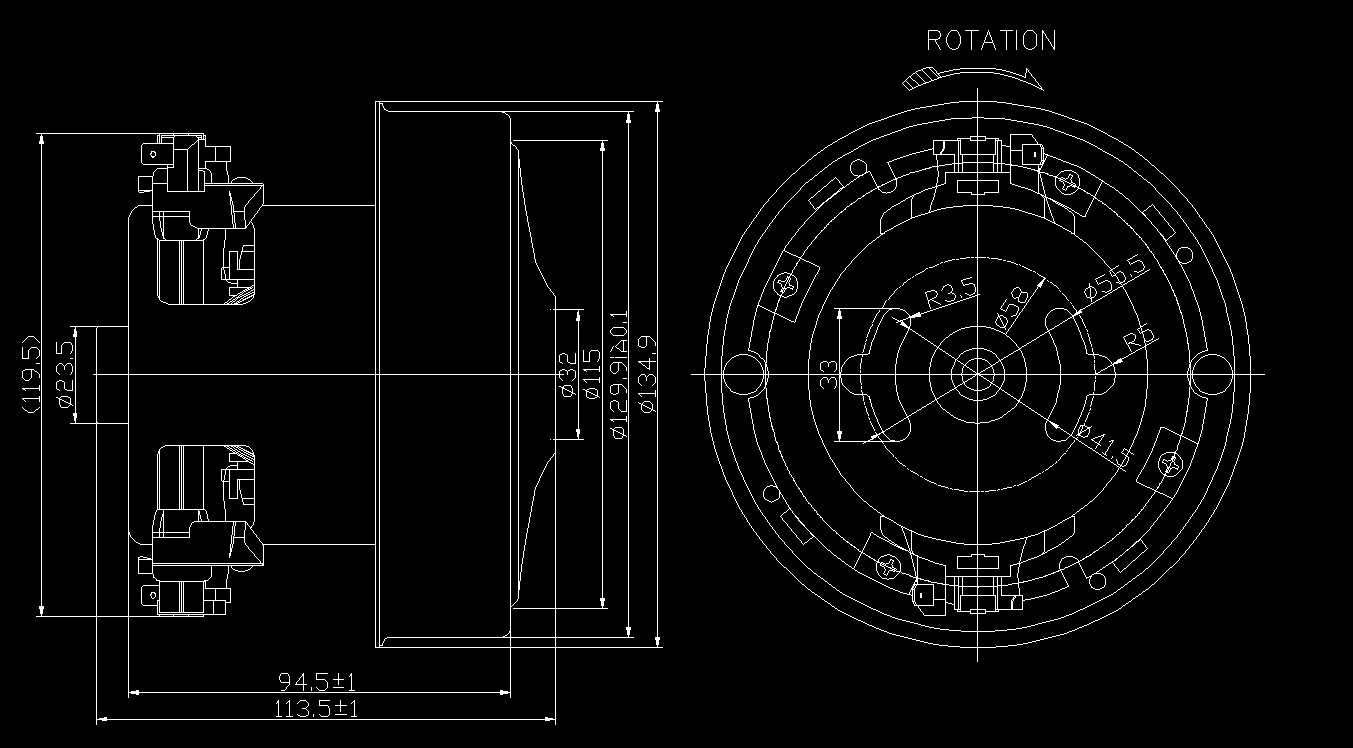

Size Drawing:
