Specifications:
| Item | D22 |
| Certificate | CE, CCC, RoHS, SGS |
| Rated Voltage(V) | 100-127/220-240 |
| Rated Frequency(Hz) | 50/60 |
| Rated Output Power(W) | 1200 |
| Rotation | CW |
| Max Vacuum Degree(Kpa) | 23 |
| Max Air Flow(M3/min) | 2.4 |
| Max Suction Power (W) | 300 |
| Max Suction Efficiency(%) | 30 |
| Motor Speed(Rpm) | 30000 |
| Spark Grade | ≤ 2 |
| Vibration(mm/s) | ≤20 |
| Noise(dB) | ≤102 |
| Insulation Level | F |
| Life | ≥500h |
| Size(mm) | Top 72, bottom 105, height 103 |

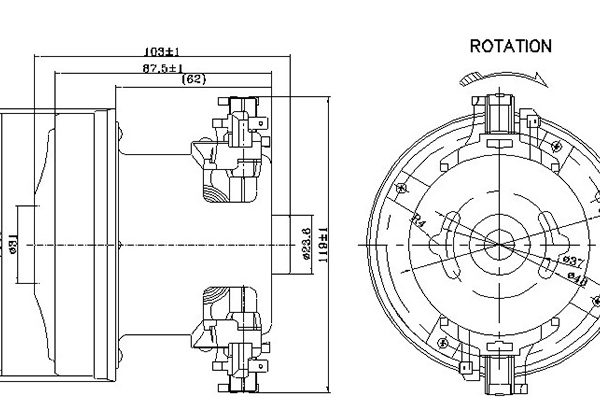

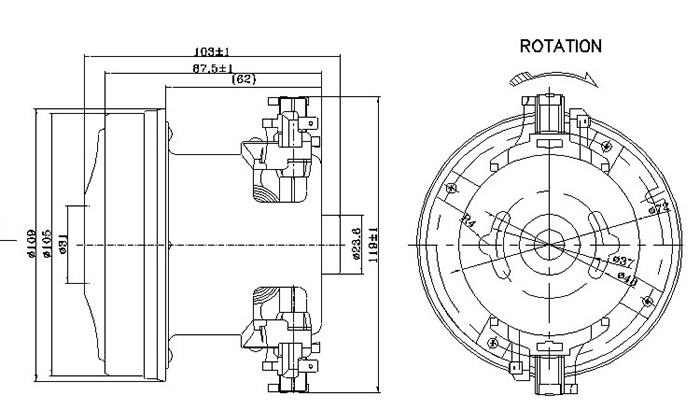

Size Drawing:
