General Use Hand Dryer Motor

Item : PA20

Type: Single Phase Universal Motor

Voltage: 100-127/220-240V

Power: 550W

Description

Specifications:

Item  PA20
Certificate CE, CCC
Rated Voltage(V) 100-127/220-240
Rated Frequency(Hz) 50/60
Rated Output Power(W)  550
Rotation CW
Max Vacuum Degree(Kpa)  13
Max Air Flow(M3/min)  2.2
Max Suction Power (W)  160
Max Suction Efficiency(%)  30
Motor Speed(Rpm)  23000
Spark Grade  2
Vibration(mm/s)  15
Noise(dB)  98
Insulation Level  E
Life  800h
Size(mm) Top 120, bottom 130, height 114

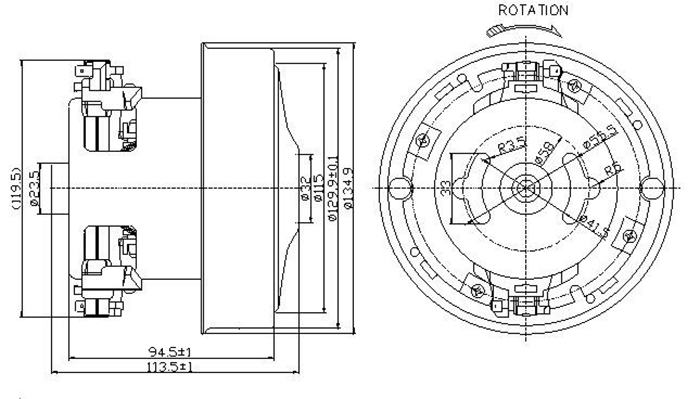

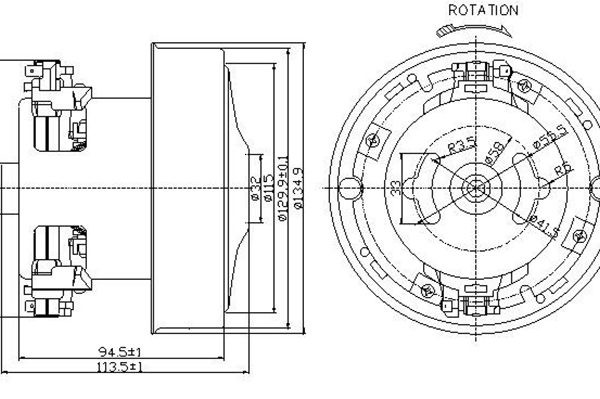

Size Drawing:



TOP
