Description
Specifications:
| Item | S28D |
| Certificate | CE, CCC |
| Rated Voltage(V) | 100-127/220-240 |
| Rated Frequency(Hz) | 50/60 |
| Rated Output Power(W) | 600 |
| Rotation | CW |
| Max Vacuum Degree(Kpa) | 17 |
| Max Air Flow(M3/min) | 1.8 |
| Max Suction Power (W) | 180 |
| Max Suction Efficiency(%) | 28 |
| Motor Speed(Rpm) | 30000 |
| Spark Grade | ≤2 |
| Vibration(mm/s) | ≤20 |
| Noise(dB) | ≤92 |
| Insulation Level | E |
| Life | ≥500h |
| Size(mm) | Top 72, bottom 105, height 103 |

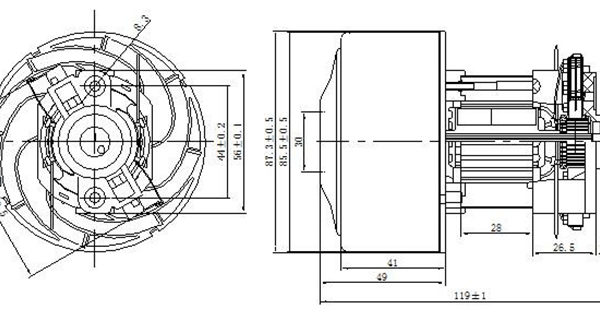

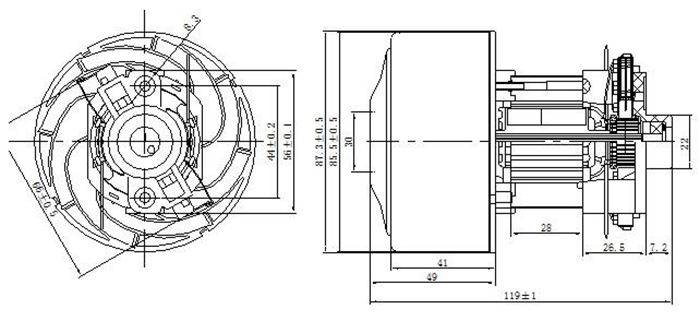

Size Drawing:
