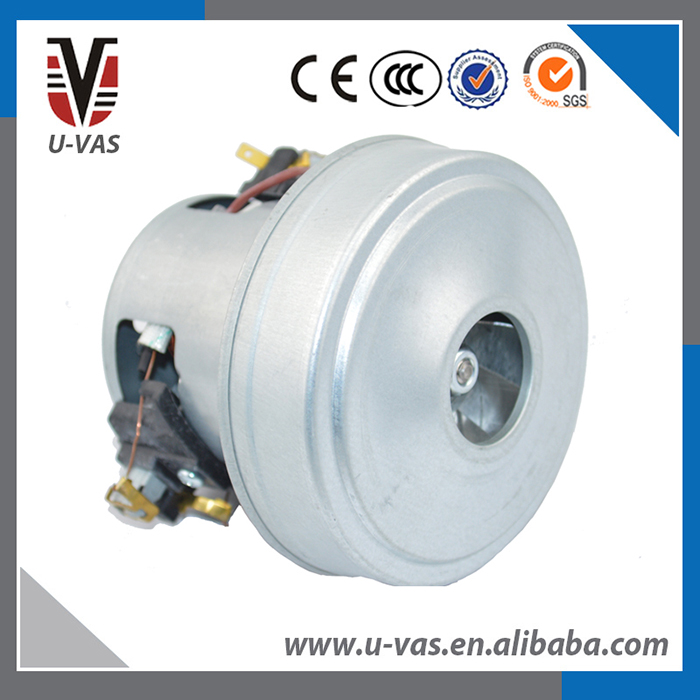

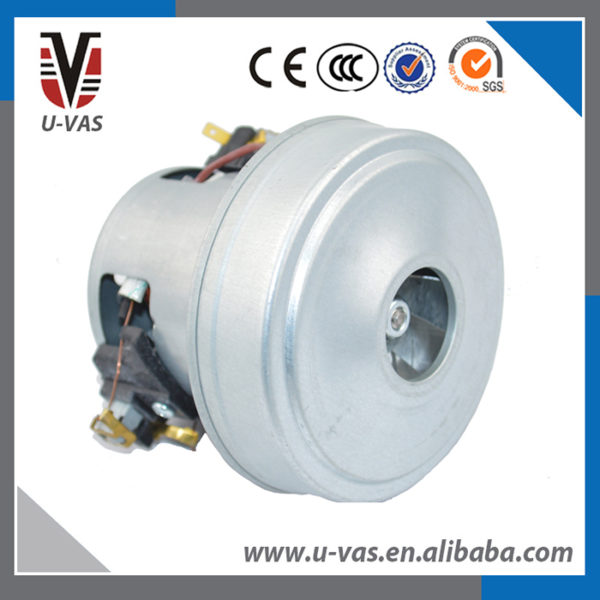

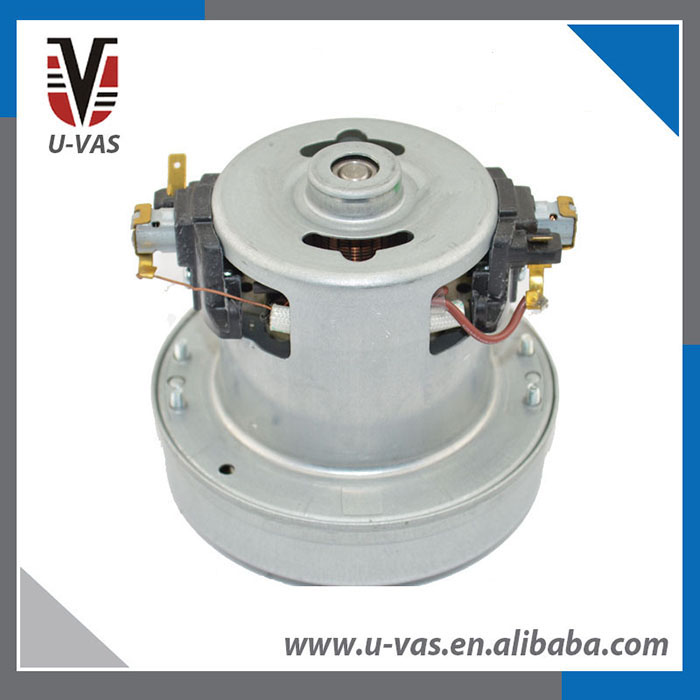

Dry Type Vacuum Cleaner Motor

Item: DJ24

Voltage: 100-127/220-240V

Power: 1200W

Description

Specifactions:

 Item  DJ24
 Certificate CE, CCC, RoHS, SGS
 Rated Voltage(V) 100-127/220-240
 Rated Frequency(Hz) 50/60
 Rated Output Power(W)  1200
 Rotation CW
 Max Vacuum Degree(Kpa)  22
 Max Air Flow(M3/min)  2.4
 Max Suction Power (W)  300
 Max Suction Efficiency(%)  30
 Motor Speed(Rpm)  33000
 Spark Grade  ≤2
 Vibration(mm/s)  ≤20
 Noise(dB)  ≤102
 Insulation Level  F
 Life  ≥300h
 Size(mm) Top 72, bottom 109, height 103

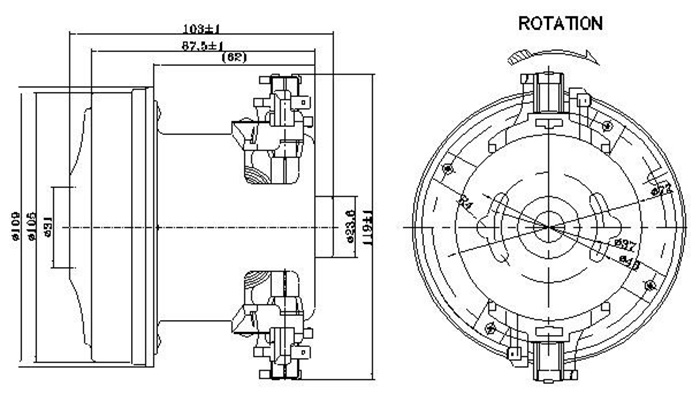

Size Drawing:

TOP
